Model Number explanation
TAE=Triangle L=Lenght W=width H=Height
Aluminum profile Housing color: W=white, B=black, S=Silver, R=red etc
Cover: O=opal, M=Micro prismatic, L=Len (L60=Len 60 degree), HC=honeycomb, L=louver, G=grille
Dali=DAL, on/off=non, DaliDT8=DT8
Linkable: ST=start, M=middle, E=end, SL=single
Up and Down: DO= direction only, DI=direction and indirection, IO=Indirection only
Example:
TAE-L120W6H6-W-30KR80-O-DAL
Mean: Traingle LED Penadant Light, housing dimesion 120cm lenght, 6cm width, 6cm height, white housing, 3000K Ra>80, opal cover, DalDT6 driver
Description table
| | | | | | | |
L6060-T-600 | W40*H80 W60*H60 W60*H80 W80*H80 ... | 10w/m
15w/m 20w/m 25w/m 30w/m ... | 2700K
3000K 3500K 4000K 5000K 6000K 6500K RGB RGBW | | Non
Dali Push Triac 0-10V Remote Tunable Emergency | White
Black Gold Silver Gray Red Yellow Green RAL Pantone | CCC RoHS SASO ISO9001 ISO14001 |
L6080-T-900 |
L4060-T-600 |
L4060-T-755 |
L4060-T-900 |
L4060-T-1055 |
L4060-T-1200 |
|
|
|
|
|
|
|
more 12 colors list option

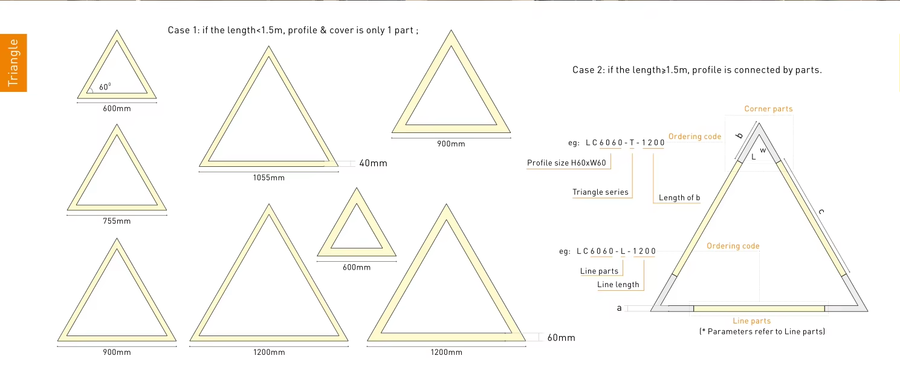

The max lenght 1.5meter we can make the production of Aluminum profile one part include cover.
A picutre is explained as follow.

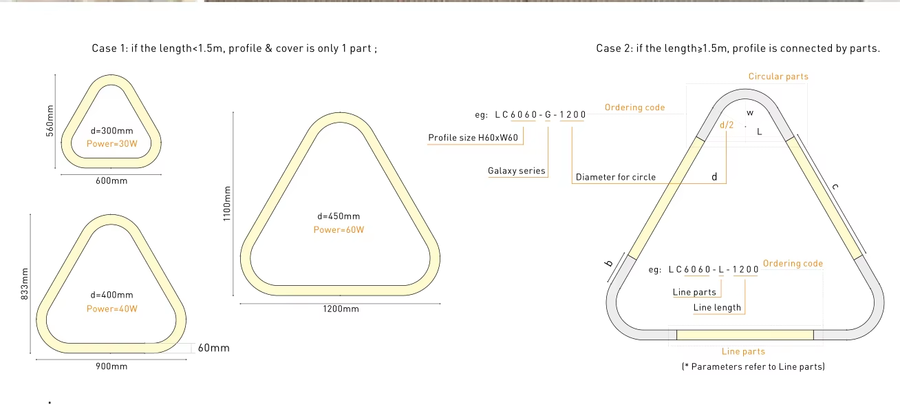

The lenght more than 1.5meter the production will be devided into segment (connected by compoent)
A picutre is explained as follow.
